FAQ AIR300

Error Messages - AIR300

Explanation



Explanation

Explanation

For more info?

Do you have a question about our products and would you like to contact us? Please call us or complete the form below.

We will be happy to help.

Display messages - AIR300

Explanation

Explanation

FAQ AIR160

Error Messages - AIR160

The software stops if there is a problem with the real time clock or with the ventilator connection. As soon as the device is switched on, the program will carry out a self-test to check the proper operation of the product. The units that are checked are the real time clock and the ventilator connection. Any problems with these items will be indicated on the display.

This message indicates that there is a problem with the BU battery. The BU battery normally has a lifespan of 10 years. In the unlikely event that this is different, this message will appear.

If you get this message please contact your local dealer to find a solution.

FAIL002 is a warning shown in the display of the unit if the unit has been switched off. The Air 160 needs to be switched on 24/7, this to make sure that it can offer the most reliable disinfection of your room.If the unit is switched off the warning message FAIL002 will appear in the display.

This warning message indicates that the room is not disinfected and may hold some unwanted micro-organisms.

Pressing the button on the display of the AIR 160 once will simply remove this warning message.

For more info?

Do you have a question about our products and would you like to contact us? Please call us or complete the form below.

We will be happy to help.

Display messages - AIR160

If you press the button once in the rest position, the operating hours will be displayed. The display will automatically start from the factory setting of the timer, i.e. 8,000 hours.

The UV-C lamp operates at 100% radiation for up to 8,000 hours. After 8,000 operating hours, the UV-C radiation will weaken, and may be insufficient to obtain the desired results. If the device is switched off and then on again, the hour counter will start counting backwards from the value it had when it was switched off.

The display will indicate 0000 when the 8,000 operating hours of the lamp have expired. The actual time will blink in the display, alternating with four blinking zeros. The filter and the UV-C lamp must now be replaced. See item ‘rSt’ in your manual “How to reset the timer”.

Privacy Policy

Alcochem BV is responsible for the processing of personal data as shown in this privacy statement.

www.alcochem.com
Zeilmaker 4
3861 SM Nijkerk
+31 (0)33-455 72 59
Chamber of Commerce 31043702

Alcochem BV processes your personal data because you use our services and / or because you provide them yourself.
Below you will find an overview of the personal data that we process:

  • Name data
  • Address details and usual contact details
  • E-mail address
  • Date of birth and possibly place
  • Phone number
  • Other personal data that you actively provide by telephone and / or in writing.
  • Bank account number

Our website and / or service does not intend to collect data about website visitors who are younger than 16 years. Unless they have permission from parents or guardians. However, we can not check if a visitor is older than 16. We encourage parents to be involved in the online activities of their children, in order to prevent data about children being collected without parental consent.

If you are convinced that we have collected personal information about a minor without this consent, please contact us via privacy.statement@alcochem.com and we will delete this information. The following special and / or sensitive personal data are processed in the context of legal obligations:

  • Citizen service number

Alcochem BV processes your personal data for the following purposes:

  • Dealing with a payment (creditor, debtor, salary, etc.)
  • Sending our newsletter and / or advertising brochure
  • You can call or e-mail if necessary to carry out our services
  • Alcochem also processes personal data if we are legally obliged to do so, such as information that we need for our tax return.

Alcochem BV makes no decisions based on automated processing on matters that can have (significant) consequences for persons.

However, Google Analytics is used.

Google Analytics is a web analytics service offered by Google. Inc. The cookies (as described in point 8 of this declaration) allow visitors to view visitor numbers and visit pages and topics. In this way, Alcochem can better tailor its communication / information on website to the needs of the visitors. Alcochem cannot see who (which PC) visits her website. Google can do this as a provider of the service. More information about the Google Analytics cookies can be found via the following link: //developers.google.com/analytics/devguides/collection/analyticsjs/cookie-usage. Additional information about the Terms of Service of Google Analytics can be found via the following link: //www.google.com/analytics/terms/gb.html.

In principle, Alcochem BV does not store personal data for longer than is strictly necessary to achieve the purposes for which the data are collected. Almost without exception the legal, in particular fiscal, retention periods are longer than the aforementioned retention periods. Therefore, Alcochem BV will conform to the statutory retention periods.

Alcochem BV does not sell your information to third parties and only and only to third parties if this is necessary for the execution of our agreement with you or to comply with a legal obligation. With companies that process your data in our assignment (HR platform, ERP system, Salary processing), we conclude a processing agreement to ensure the same level of security and confidentiality of your data. Alcochem BV remains responsible for these processing operations.

Alcochem BV only uses technical and functional cookies. And analytical cookies that do not infringe your privacy. A cookie is a small text file that is stored on your computer, tablet or smartphone when you first visit this website.

The cookies we use are necessary for the technical operation of the website and your ease of use. They ensure that the website works properly and remember, for example, your preferences. We can also optimize our website with this. You can opt out of cookies by setting your internet browser so that it does not store cookies anymore. In addition, you can also delete all information previously saved via the settings of your browser.

You have the right to view, correct or delete your personal data. You also have the right to withdraw your consent to the data processing or to object to the processing of your personal data by Alcochem BV and you have the right to data portability. This means that you can submit a request to us to send the personal information we have in your computer file to you or another organization mentioned by you.

You can send a request for inspection, correction, deletion, data transfer of your personal data or request for cancellation of your consent or objection to the processing of your personal data to  privacy.statement@alcochem.com.

To ensure that the request for access has been made by you, we ask you to send a copy of your ID with the request. Make your passport photo, MRZ (machine readable zone, the strip with numbers at the bottom of the passport), passport number and “citizen service number” black in this copy.

When using an app like “CopyID” (Dutch Goverment) this is easy to process on your smartphone. Both for iOS and Android devices can be found in app store. This is to protect your privacy. We respond as quickly as possible, but within four weeks, at your request.

Alcochem BV also wishes to point out that you have the opportunity to file a complaint with the national supervisory authority, the Dutch Data Protection Authority. This can be done via the following link: //autoriteitpersoonsgegevens.nl/nl/contact-met-de-autoriteit-persoonsgegevens/tip-ons

This site is a Dutch based website with a translation to part for the English version.

Alcochem BV takes the protection of your data seriously and takes appropriate measures to prevent misuse, loss, unauthorized access, unwanted disclosure and unauthorized modification. If you have the impression that your data is not properly secured or there are indications of abuse, please contact us via our general company number +31(0)33-455 72 59 or via privacy.statement@alcochem.com.

Version 1.0 / April 2018

AIR300

Net Area Volume

1200 m³/h

UV-C lamps

4x 24 W

Max. Area Capacity

400 m²

Disinfection

99.99 %

AIR300 Air purifier

Purified air treatment is all about flexibility

air300-vrijstaand

The AIR300 is designed with flexibility in mind.
The atmosphere in buildings is constantly changing and as such a modern air treatment system needs to offer flexibility.

Different problems occur throughout the year:

  1. Pollen, typically found in spring time, finds its way into buildings
  2. Unwanted smells, found in certain areas
  3. Microbial threats coming from both outside or inside areas
  4. High formaldehyde or toluene concentrations

All these problems, and more, can easily be solved with the AIR300. The AIR300 is a modular air treatment unit, which can be used in a wide variety of locations.

Easy to service, stylish and effective; it’s the perfect mobile air purifying system for many applications.

Net Area Volume

1200 m³/h

UV-C lamp

4x 24 W

Max. Area Capacity

400 m²

Disinfection

99.9 %

All about flexibility​

air300-airflow
Four-position pneumatic system:The air flows in and out in six directions, so purification is complete, avoiding any dead spots.
Four way air supply (Multi-Flow): The revolutionairy design of the air outlet grid offers clear advantages. Double-sided air intake: The air returns faster and cleaner, and the room has no dead spots.
  • The air flows in and out in six directions, forming a three-dimensional circulating air flow
  • Air exchange rate up to 1200 m³/h
  • The Multi-Flow outlet grid design offers a ventilation efficiency of 33% over a  conventional (flat) air outlet design

Airborne dust capture also helps maintain productivity of in-room heating and air conditioning units.​

Filter Modules

The AIR300 has two chambers, into which a filter module can be placed

Available filter modules are:

  • A module, which controls toluene and/or Formaldehyde
  • A HEPA filter module
  • A UV disinfection module, equipped with 2x a 24 watt Philips UV-C lamp

Depending on the problem, the unit can be equipped with either a single module, or a combination of any two. Changing the filter cassette is simple and will take less than 20 seconds.

To ensure the air composition is monitored, the AIR300 is equipped with a particle sensor which constantly measures the air quality. Set in Auto mode it will adjust the air speed so as to optimise air filtration.

The AIR300 offers professional grade air solutions

PM0.3 removal rate: 99.97%
Formaldehyde removal rate: 99%

HEPA module / TVOC module

HEPA filter offers A surface area with the size of 142 basketball courts
  • Equipped with Toray® H13 HEPA filter from Japan,
  • Effectively removes fine particles as small as 0.3 microns capable of entering the human alveoli (lungs),
  • Filtration efficiency is as high as 99.97%,
The TVOC module offers A filter addition
  • The filter element is also equipped with activated carbon with special catalytic properties,
  • Can eliminate formaldehyde, benzene, ammonia, second-hand smoke, odour molecules and other harmful chemicals,
  • Strong adsorption and catalytic decomposition.

UV module - Kill bacteria and viruses

The ultraviolet technology has received worldwide recognition for its disinfection ability.
The special UV lamps emit light of 253.7 nm and focuses on killing bacteria and viruses.

Up to 4x 24 Watt PHILIPS PL-L UV-C lamps within the unit
generate ultraviolet radiation with a wavelength of 253.7 nanometres.

Powerful performance

The philosophy behind building the AIR300, is to create an air purifier that is both powerful and elegant.

bovenaanzicht
AIR300 is an excellent example of this concept. It has all the elements
a professional air purifier should have, including powerful purification capacity and efficiency, plus expansion performance,
a low noise level and easy to operate.

AIR300 protects your health at home, at your work space or in more demanding environments.

Powerful disinfection

The AIR300 air steriliser represents ground-breaking innovation and inspiration in UV disinfection.

airflow-colored
Based on UV powerful and efficient disinfection ability and creative design.
It provides you with a combined air pollution solution, designed to address complex and changing air problems.

AIR160 Classic

Net Area Volume

50 m³/h

UV-C lamp

1x 60 W

Max. Area Capacity

100 m³

Disinfection

99.99 %

AIR160 Classic Air purifier - For a better Air Quality​

The AIR160 Classic is based on existing air disinfection methods that are already being used to purify the air hospital operating theatres. Three successful methods have now combined into a single device that is suitable for smaller areas up to 100 m³.

AIR160_classic

These three methods are: air ionization, filtration and UV-C light disinfection.

Purifying the air you breathe is no longer a superfluous luxury. An increasing number of micro-organisms and chemical pollutants are commonly found in the air we breathe in indoor environments, including viruses, bacteria and moulds, and these make our air less healthy to breath.

blue-label

But also smoke and pollen can be successfully diminished. The AIR160 is a compact, stand-alone system, immediately ready-for use with simple installation and maintenance.

Easy to service, stylish and effective; it’s the perfect air purifying system for so many applications.

Net Area Volume

50 m³/h

UV-C lamp

1x 60 W

Max. Area Capacity

100 m³

Disinfection

99.9 %

Filtration

Airborne dust capture also helps maintain productivity of in-room heating and air conditioning units.​

A quiet, high-performance Ventilator draws the air through a hospital-grade Air Flow Electrostatic (HAF) Filter into the Disinfection Chamber.

The Fan circulates 50 m³ of air per hour

The NIDEC fan draws the air in the room into the bottom of the unit, creating air circulation. The fan circulates 50 m³ of air per hour through the Aetaire. Depending on the size of the room, the fan can be set to 25 or 50 m³ per hour.

Dust particles and pollen are caught in a special Aetaire HAF filter

The air drawn in by the Aetaire first passes passes through the Aetaire High Air Flow (HAF) filter. This special filter contains an antimicrobial film layer that prevents the growth of various infectious substances on the filter. The antimicrobial media slows the rate at which the filter becomes clogged, thereby increasing its service life.

HAF filters use an electrostatic charge, to operate with twice the efficiency of standard washable foam filters. Consequently they attract, capture, and retain more pollutants and particles than traditional filter media.

The HAF filter keeps the Disinfection Chamber of the AIR160 cleaner, so optimised air disinfection is guaranteed. Plus, the filter’s open channel structure offers minimal airflow resistance ensuring maximum particle removal and maximum airflow. The HAF filter includes an antimicrobial agent that prevents mould growth further increasing performance.

UV-C light to kill bacteria, viruses, moulds and other micro-organisms

After passing through the filter, the air is treated with UV-C radiation. The special Philips UV-C lamp in the unit generates an ultraviolet radiation with a wavelength of 253.7 nanometres.

The UV-C light destroys viruses, bacteria, moulds and other primitive organisms. The radiation damages the DNA structure of micro-organisms and prevents their reproduction.

The special aluminium interior of the housing provides additional reflection of the UV-C radiation, thereby increasing the efficiency of the UV-C radiation up to 50%.

Technical specifications Philips TUV PL-L 60W/4P HO lamp
• TUV PL-L 60 Watt
• UV-C output 19 Watt
• Dose 4,23 mJ/cm² (Flow 50m³/hr)

technical view_UVC
ultraviolet_visible_infrared-1024x442

Ionisation results in cleaner, dust- and pollen-free air

ionization

The large number of negative ions produced improves the resistance of the human body, and may even promote healing processes

Finally it passes the ioniser. The ionizer introduces 8.5 million negative ions per cubic centimetre into the air. Most of the dust particles in an enclosed space normally have a positive charge. Negative ions have the effect of attracting positive dust particles. By adding negative ions to the air, the positive particles in the air become heavier, which causes them to sink towards the ground. The process therefore results in cleaner, dust- and pollen-free air.

At places where the air is clean, the air contains many more negative ions. Here are some examples of the great number of negative ions in various surroundings, per cm³

Facts of negatieve ions per cm³

0
Ioniser AIR160
0
Park in the city
0
Sidewalk
0
Mountains / Sea
0
Waterfall / Forest
0
Outskirts of a City
0
At home

About Us

Aetaire International

Aetaire International is a prominent company focused on improving people’s lives through timely innovations. With more than 20 years of experience in the field of disinfection, using technically advanced UV-C and UV-A equipment.

The contamination of the earth, and air contamination along with it, has had our attention for a long time now. Today there are international agreements in place that are intended to reduce environmental pollution.

New national and international regulations and laws have also been implemented to improve the quality of the air.

Aetaire is a brand of Alcochem Hygiene. Alcochem Hygiene started mid-2005 to produce a range of professional non-chemical pest control products (based on UV-A) for the global market. The HQ is located in Nijkerk (Netherlands) and there are established sales offices in the Waalre (NL), Beijing (CH), Moscow (RUS) and Santiago (CL). about-us.

We currently operates in over 80 countries worldwide.

Why choose us

Quality has always been at the core of us, as we want our products to last whilst being used every day. To ensure the highest quality, we like to be in charge of the entire development and production process – from the first sketch to the final product.

Our products meet the highest standards. Our products are CE and/or CB approved by TUV.

If there is still something wrong with your device, you can always reach us at info@aetaire.com

Manufacturing

Development, innovation, production, and logistics are key disciplines of Alcochem’s competences and has allowed the company to serve various industries. Operating around the globe, Alcochem Hygiene has built up an extensive network, that offers innovative and high-quality products to the market.

Look for other product groups of Alcochem Hygiene:

How it works

Step by step explanation of air Purifier with UV-C desinfection

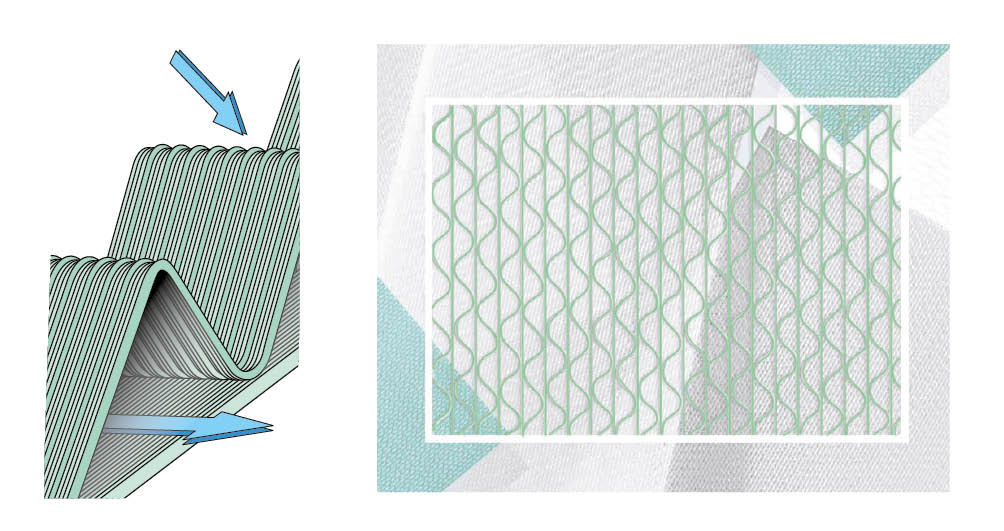

HAF Filtration (AIR160 Classic)

Dust particles and pollen are caught in the filter

The open channel construction of Aetaire High Air Flow (HAF) Air Filters offers low initial airflow resistance while its unique microstructure and electrostatic charge provide effective particle capture and retention. This may translate to fewer filter changeouts, reduced coil cleaning, and/or reduced maintenance cost.

Physical characteristics
  • Open channel structure
  • Microstructured, electrostatically charged media (refer to Performance Data on next page)
  • 100% synthetic media
  • Self-supporting filter
  • Antimicrobial: Green

HEPA Filter

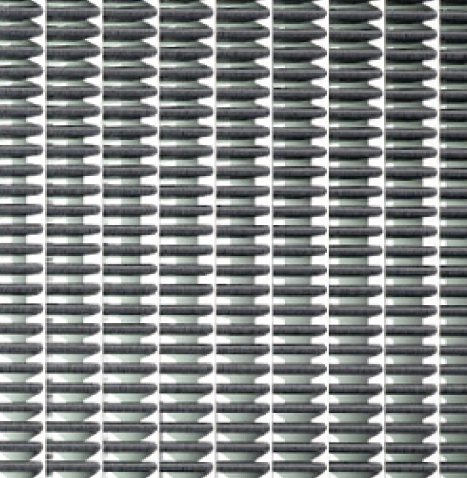

HEPA Filter AIR300

Dust particles and pollen are caught in the filter

High-efficiency particulate air (HEPA), also known as high-efficiency particulate absorbing and high-efficiency particulate arrestance, is an efficiency standard of air filter.

Filters meeting the HEPA standard must satisfy certain levels of efficiency. Common standards require that a HEPA air filter must remove—from the air that passes through—at least 99.95% (European Standard) or 99.97% (ASME, U.S. DOE) of particles whose diameter is equal to 0.3 μm; with the filtration efficiency increasing for particle diameters both less than and greater than 0.3 μm.

HEPA was commercialized in the 1950s, and the original term became a registered trademark and later a generic term for highly efficient filters. HEPA filters are used in applications that require contamination control, such as the manufacturing of disk drives, medical devices, semiconductors, nuclear, food and pharmaceutical products, as well as in hospitals, homes and vehicles.

UV-C light

ultraviolet_visible_infrared-1024x442

UV-C Light - 60 W 2G11 PL-L UV-C

After passing through the filter, the air is exposed to the UV-C light. The special Philips UV-C lamp(s) in the Aetaire produces ultraviolet radiation at a wavelength of 253.7 nm.

This UV-C light kills bacteria, viruses, moulds and other primitive organisms. The radiation destroys the DNA structure of micro-organisms and prevents their reproduction. This method even works if the micro-organisms have become immune to other disinfection methods. Your air will be disinfected in a safe and efficient manner, and you will enjoy excellent air quality.

Technical specifications:

  • Philips TUV PL-L 60W/4P HO lamp (AIR160)
  • TUV PL-L 60 Watt
  • UV-C output 19 Watt
  • Dose 4,23 mJ/cm² (Flow 50m³/hr)

FAN - Circulation of air per hour

Aetaire fans draws air in the room into the unit, creating air circulation. The fan circulates m³ of air per hour through the Aetaire AIR160 and AIR300. Depending on the size of the room, the fan can be set to 20, 30 or 50, 600 or 1200  per hour.

Ionisation (only AIR160 Classic)

At places where the air is clean, the air contains many more negative ions. Here are some examples of the great number of negative ions in various surroundings, per cm³

Ionisation - only AIR160

Finally it passes the ioniser. The ionizer introduces 8.5 million negative ions per cubic centimetre into the air. Most of the dust particles in an enclosed space normally have a positive charge. Negative ions have the effect of attracting positive dust particles.

By adding negative ions to the air, the positive particles in the air become heavier, which causes them to sink towards the ground. The process therefore results in cleaner, dust- and pollen-free air.

Facts of negative ions per cm³

0
Ioniser AIR160
0
Park in the City
0
Sidewalk
0
Mountains / Sea
0
Waterfall, Forest
700
Outskirts of a city
0
At home

Airborne dust capture also helps maintain productivity of in-room heating and air conditioning units.

Our design

With the Aetaire Air Purifiers you have an air filter, UV-C sanitising light, special Fan and Air ioniser(AIR160) in one professional system.

You can now easily eliminate bacteria, viruses, moulds, pollens and dust particles from the air you breathe.

The air in your living and/or working environment is continuously purified.

You prevent your environment from illnesses, allergies and the spread of the substances that cause them.

Why choose us

Quality has always been at the core of us, as we want our products to last whilst being used every day. To ensure the highest quality, we like to be in charge of the entire development and production process.

Feel free, move free

Enjoy the feeling of clean Air, that’s the feeling we want
to capture when we design our Aetaire units.

Home Aetaire

All-in-one Air Purification Systems

Filters

HAF or HEPA 14

Lamps

Philips UV-C

Ionisator

only AIR160 Classic

TVOC

only AIR300

AIR160 Classic - wall mounted / floor standard

With the AIR160 Classic you have an Aetaire Air Filter, Signify/Philips UV-C purifying light and an Air Ioniser in one professional system. You can now easily eliminate bacteria, viruses, moulds, pollens and dust particles from the air you breathe.

The air in your environment

The air in your living and/or working environment is continuously purified. You prevent your environment from illnesses, allergies and the spread of the substances that cause them.

Purifying your air

Purifying the air you breathe is no longer a superfluous luxury. An increasing number of micro-organisms and chemical pollutants are commonly found in the air we breathe in indoor environments, including viruses, bacteria and moulds, and these make our air less healthy to breath.

Net Air Volume

50 m³/h

UV-C lamp

1x 60 W

For a better air quality

Get rid of viruses, bacteria and moulds.
Disinfect the air you breathe.

AIR300 Mobile Air Purifier

The AIR300 is designed with this flexibility in mind. Pollen, unwanted smells, Microbial threats High formaldehyde or toluene concentrations can easily be solved with the AIR300. The AIR300 is a modular air treatment unit, which can be used in a wide variety of locations.

Four-position pneumatic system:

The air flows in and in & out in six directions, so purification is complete, avoiding any dead spots.

FOUR WAY AIR SUPPLY (MULTI-FLOW):

The revolutionairy design of the air outlet grid offers clear advantages.

DOUBLE-SIDED AIR INTAKE:

The air returns faster and cleaner, and the room has no dead spots.

Net Air Volume

1200 m³/h

UV-C lamp modules

2x 24 W

For a better air quality

Get rid of viruses, bacteria and moulds.
Disinfect the air you breathe.

virus, bacteria and moulds

PURIFYING THE AIR

Purifying the air you breathe is no longer a superfluous luxury. An increasing number of micro-organisms and chemical pollutants are commonly found in the air we breathe in indoor environments, including viruses, bacteria and moulds, and these make our air less healthy to breath.

filtration, UV-C and ionization

SUCCESSFUL METHODS

Aetaire units are based on existing air disinfection methods that are already being used to purify the air hospital operating theatres. Three successful methods have now combined into a single device that is suitable for smaller areas up to 100 m3 (AIR160 Classic) or 1200 m3 (AIR300) These three methods are: air ionization, filtration and UV-C light disinfection.

efficiency

HEALTHCARE ON SCHOOLS

The special aluminium interior of the housing provides additional reflection of the UV-C radiation, thereby increasing the efficiency of the UV-C radiation up to 50%.

What's inside - AIR160 Classic

1. Aetaire HAF filter

Aetaire HAF filters use an electrostatic charge, to operate with twice the efficiency of standard washable foam filters.

2. UV-C lamp - 1x 60 Watt

As the world’s largest lamp manufacturer, Signify/Philips has a reputation for innovation, efficiency and high quality. No other lamp manufacturer can offer you the lighting knowledge and expertise that Signify/Philips has gained over the course of more than a hundred years.

3. IoniSation (below fan)

The negative ions introduced by the AIR160 Classic Ioniser form compounds with the positive ions present. The compounds thus formed are too heavy to float in the air; so they sink down and are captured by the Aetaire HAF filter.

02092020-AIR160 Brochure_A4_3.0

What's inside - AIR300 (basic module)

1. UV-C lamp - 2x 48 Watt module

As the world’s largest lamp manufacturer, Signify/Philips has a reputation for innovation, efficiency and high quality. No other lamp manufacturer can offer you the lighting knowledge and expertise that Signify/Philips has gained over the course of more than a hundred years.

2. H14 HEPA filter (optional i.c.w. UV-C or TVOC module)

Effectively removes fine particles as small as 0.3 microns capable of entering the human alveoli (lungs). Thanks to the quality of the HEPA filter a Ionizer is not longer needed to get the same result.

3. High Air supply Fan

Multi-Flow air supply module: Forms a fan-type airflow, with the fresh air delivered everywhere

About Aetaire

Aetaire International is a prominent company focused on improving people’s lives through timely innovations. With more than 20 years of experience in the field of disinfection, using technically advanced UV-C and UV-A equipment.

The contamination of the earth, and air contamination along with it, has had our attention for a long time now. Today there are international agreements in place that are intended to reduce environmental pollution.

New national and international regulations and laws have also been implemented to improve the quality of the air.

Contact us

Get in touch

If you like more information about our units, just give us a call or fill in the form below. We will contact you as soon as possible.

Contact us

Contact our Resellers

    • Zeilmaker 4 3861 SM Nijkerk | The Netherlands
    • +31 (0)33 299 4139
    • info@aetaire.com

    BeNeLux

    De Meerheuvel 10
    5221 EA ‘s-Hertogenbosch, the Netherlands
    +31(0)73 – 55 11 055
    info@rtvision.nl

    Italy (Dentists)

    IDS Spa
    Via S. Cristoforo 28/10, Savona, Italy
    www.idsdental.it
    info@idsdental.it

    Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.
    • Image
    • SKU
    • Rating
    • Price
    • Stock
    • Availability
    • Add to cart
    • Description
    • Content
    • Weight
    • Dimensions
    • Additional information
    Click outside to hide the comparison bar
    Compare
    Add to cart
